Products

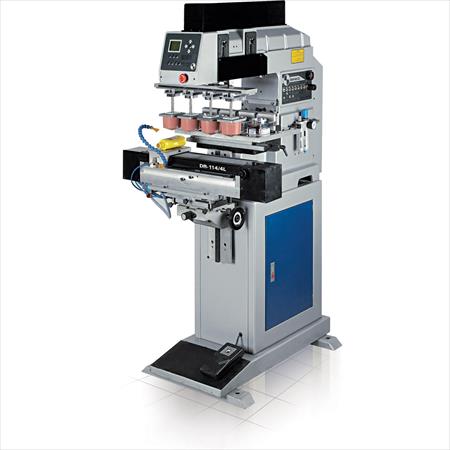

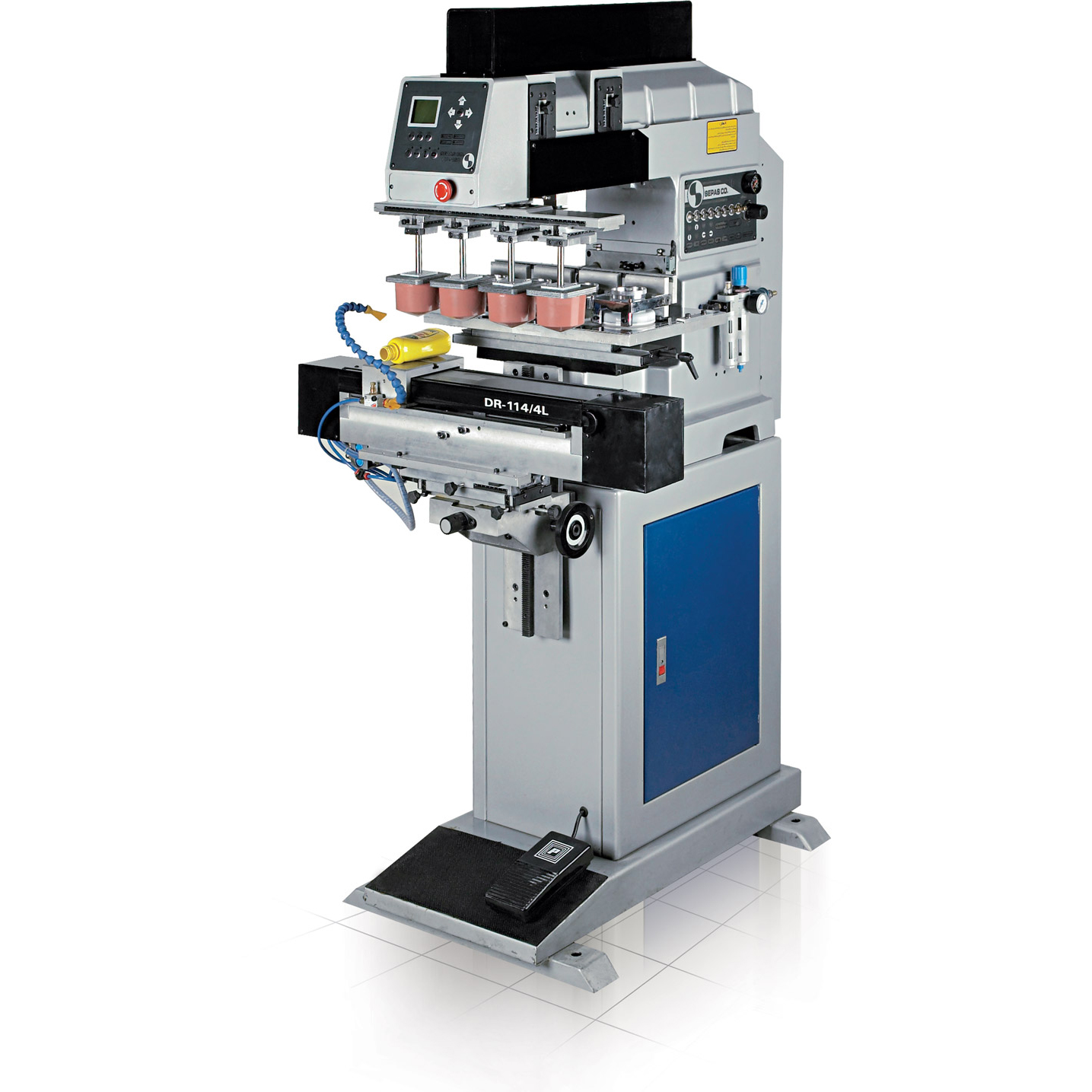

Pad Printing Machines >> Four Colors-Medium Size (PP150)

Our Famous Standard PP Series pad printer is available for single colour up to 4 colour applications. Built to last with its rigid aluminium casting frame PP-150 can easily be combined with automation Accessories for more capabilities. The use can choose from single, two-colour, multi colour or tansverse Inking, linear shuttles, conyeor, and more. These components are 100% user installable, and can be Purchased in any combination, at the same time as the PP-150 base unit, or later.


Equipments
Conveyer
UV Dryer
Automatic feeder

Features
4-colour user-friendly automatic pad printer
Flat and Round printing
Pneumatic power operation
Adjustable timing for printing cycle
Continuous printing action with pause / resume
Multi language display
Microprocessor, membrane switch control panel
Automatic error finder
Auto air blower for easy colour registration
Emergency interrupt
Close system (CMIC) and open tray
Ink mixing mode
Single cycle mode
Thin plate , polymer cliché and steel plate
Change ink cup or open tray in seconds
Single pick up / double print option
Double pickup / single print option
Programmable for various requirements
Independently adjustable print down stroke in four- colour mode
Pad down and hold feature (print stroke only)
Light & Rigid aluminium casting machine frame

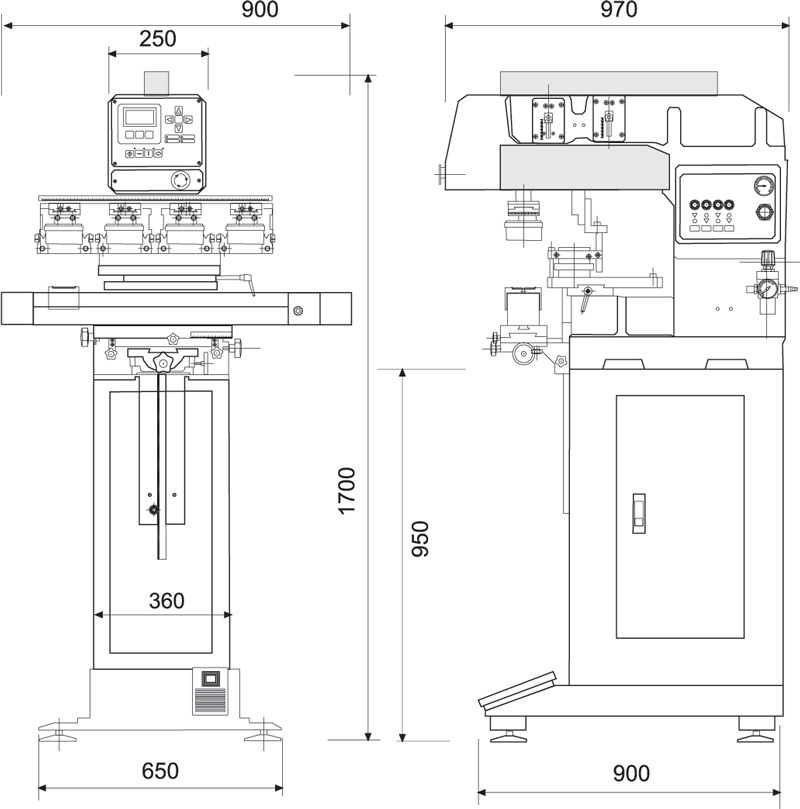

Dimension

Specifications

Specifications 1 Color 2 Colors
Cliche Dimension (Open Tray) 100*(100, 200, 300, 400)mm 100*(300, 400)mm
Closed Cup Diameter 80mm 80mm
Print Area (Open System) 40*350mm 70*80mm
Maximum Printing Speed 2200 Strokes/hr 1800 Strokes/hr
Electric Supply 220V - 50/60 Hz 220V - 50/60 Hz
Power Consumption 50W 50W
Operating Pressure 6 Bar 6 Bar
Air Consumption 70 lit/min 90 lit/min
Dimensions 710*550*1300mm 710*550*1300mm
Weight 100Kg 120Kg


Our Samples
