Screen Printing Machines >> Foiling Machine

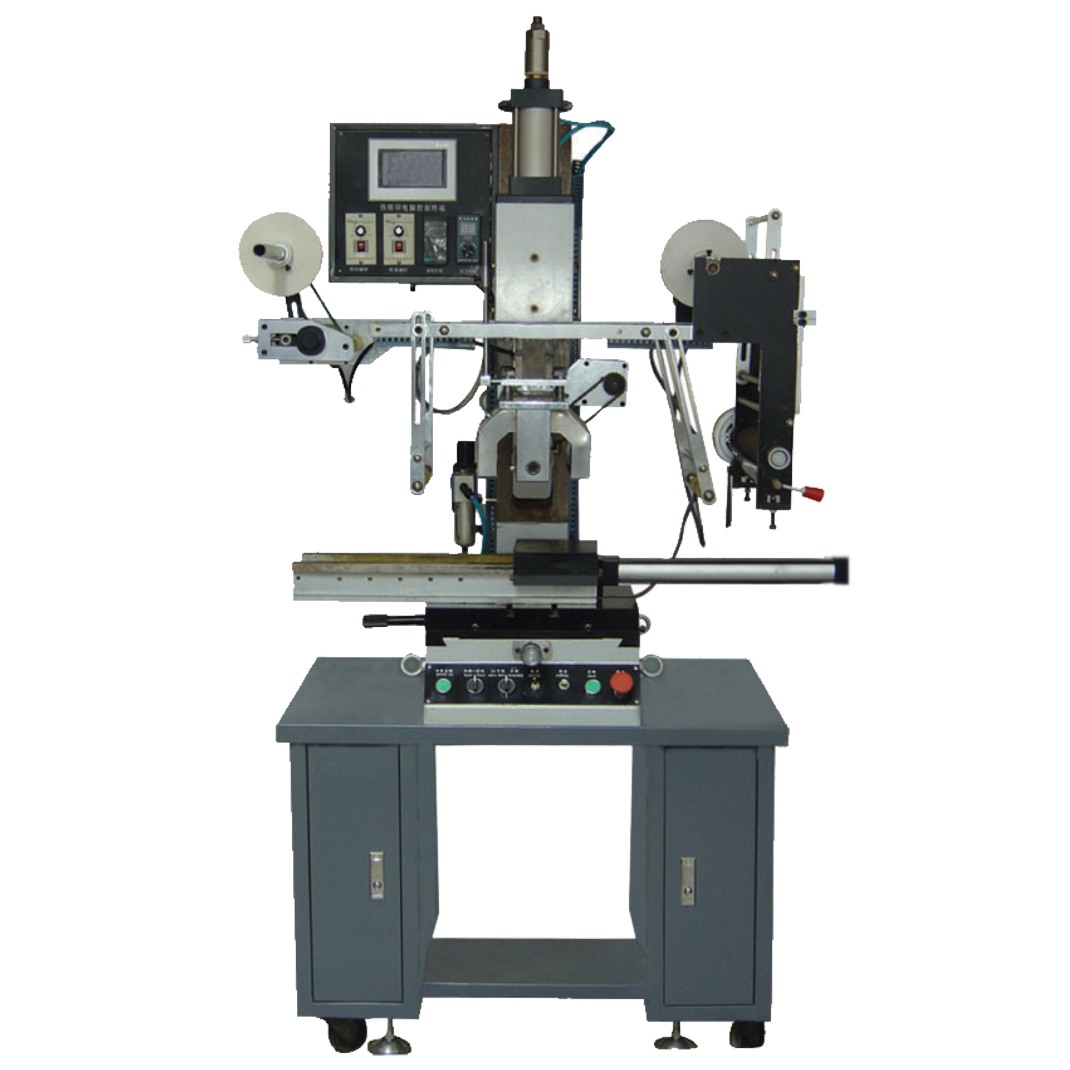

Our standard foiling machine is a versatile semi-automatic machine designed to print different families of flat, round and curve glass bottle using rolling stamping which is ideal for decorating several different products after the screen printing is done.


Features

Versatile user-friendly machine for flat and round foiling printing
Pneumatic power operation
Adjustable timing for printing cycle
Continuous printing actio with pause/resume
Microprocessor, membrane touch control panel
Simple & accurate rubber silicon pressure adjistment
Automatic photoelectric orientation, double-speed motor
High accuracy in orientation
Material feeding draw roll, electromagnetic on-off strain control
Material feeding strain torque, adjustable at random
Circumference connection and design jointure can be made persistently
Unique: Equipped with Electric Tension Unit for adjustment of Foil

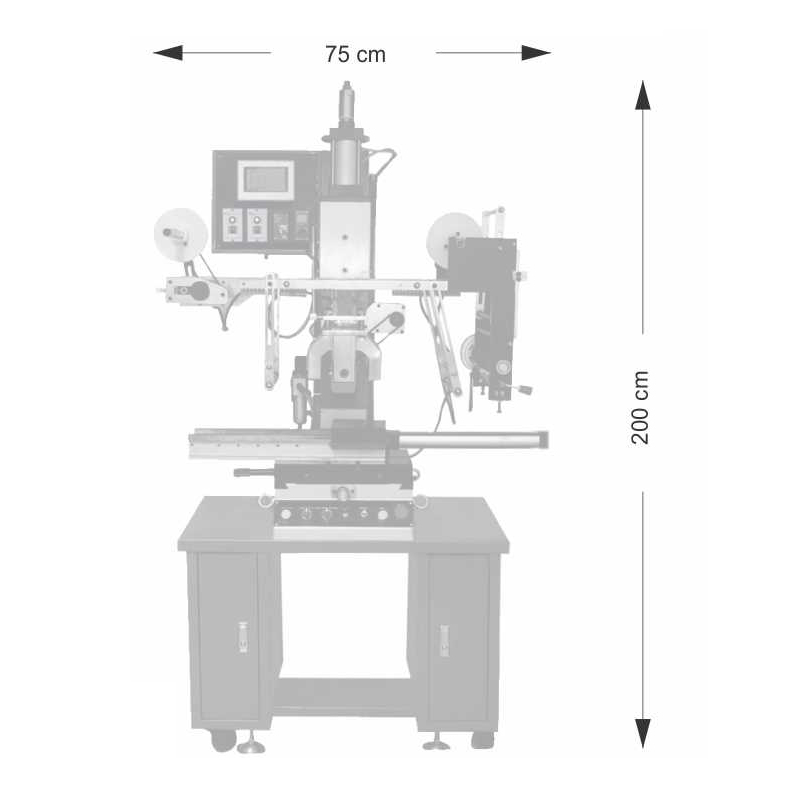

Dimension

Specifications

Max. transfer printing dimensions 16 cm x 30 cm
Max. speed 15 times / minute
Max. height 15 cm
The dimensions of the machine L130 cm x W75 cm x H200 cm
Weight of the machine 280KG
Pressure of gas when used 4-6 bar
Heating power 2 KW
Temperature adjustment range 0 - 300


Our Samples
